Check Injectors

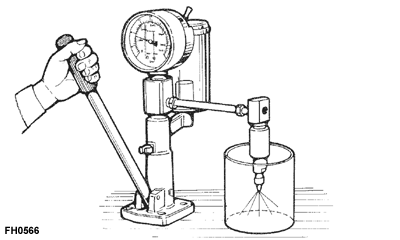

  • Connect the injector to a hand pump and check that setting pressure is 250-258 bars.
  • Do the necessary adjustment by changing shim over the spring.
  • Clean the injector by pressurized air.
FH0566

SS01820,0000B5A -19-14AUG07-1/1
