Check MFWD Axle Oil Level

1. Park tractor so that oil fill mark (A) on MFWD hub is level with the ground.

2. Remove plug (A) to check oil level in axle housing. Oil level should be even with bottom of hole.

3. If level is low, add John Deere GL-5 GEAR LUBRICANT or John Deere EXTREME-GARD ™ Gear Lubricant or its equivalent. (See Fuels, Lubricants and Coolant section.)

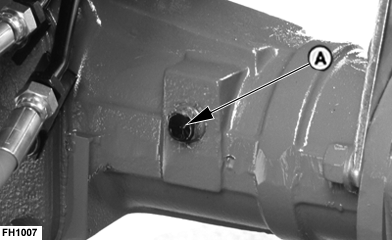

A-Oil Fill Plug

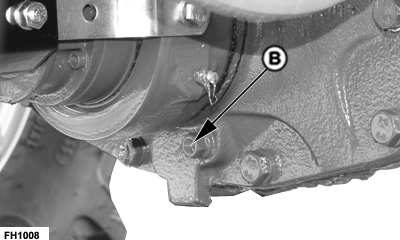

B-Oil Drain Plug

FH1007
FH1008

EXTREME-GARD is a trademark of Deere & Company

SS01820,0000B73 -19-21APR08-1/1
