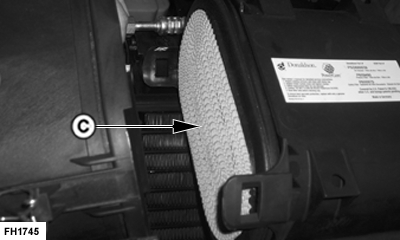

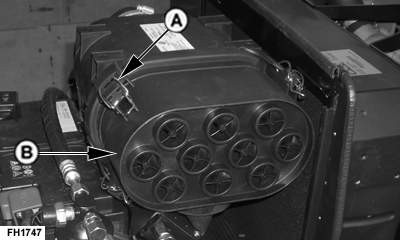

Service Air CleanerIf a air restriction indicator is lamp then the air cleaner's primary element must be taken out and cleaned. The service interval may be extended briefly, e.g. until the next suitable opportunity. Provided the cleaner is serviced properly, this will not adversely affect its performance. The primary element can be cleaned up to five times. Thereafter, or at the latest after 1500 hours of operation (or 2 years), it must be replaced. The primary element can be cleaned up to five times. Thereafter, or at the latest after 1500 hours of operation (or 2 years), it must be replaced. Open the hood, remove straps (A). Remove cover (B) and pull the primary filter element (C) out of the cleaner housing. IMPORTANT: Never run the engine without the primary filter element!
|
|
SS40167,00001C4 -19-30APR08-1/1 |
