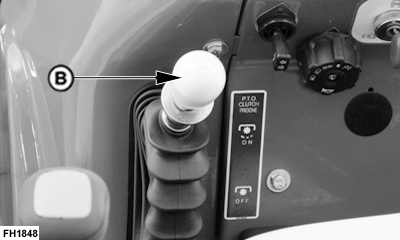

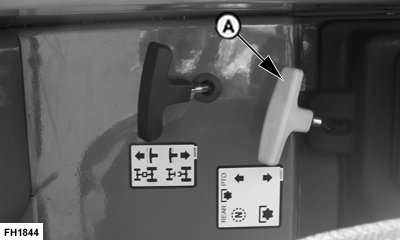

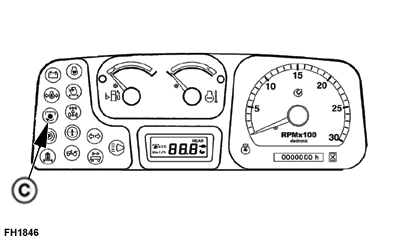

Operate Tractor PTO1. Push PTO clutch lever (B) in down position. Warning buzzer will sound once PTO clutch lever (B) is in down position. PTO dash indicator light (C) will come on. The tractor foot clutch does not need to be engaged when using the PTO clutch lever (B).2. Push PTO engagement lever (A) in down position. Some slight grinding may occur but this is normal. 3. Lift PTO clutch lever (B) to up position. Warning buzzer will stop and PTO will engage and begin turning. PTO dash indicator light (C) will turn off. IMPORTANT: A warning alarm will sound if operator leaves seat with PTO engaged. 4. Push PTO clutch lever (B) in down position to disengage PTO. Warning buzzer will sound once PTO clutch lever (B) is in down position. PTO dash indicator light (C) will come on. 5. Pull PTO engagement lever (A) to "NEUTRAL" position.
NOTE: Tractor will not start if PTO engagement lever (A) is in down position. If tractor will not start, ensure PTO engagement lever (A) is in the "NEUTRAL" position, gear shift is in neutral, and parking brake is engaged. 6. Lift PTO clutch lever (B) to up position. |
|
CAUTION:
Turn key OFF to stop engine and make sure all mechanisms have stopped before cleaning out machine or making any adjustments to PTO driven implement.
SS40167,00002A8 -19-05JUN08-1/1 |
