Ballast Front End for Transport
 CAUTION:
Additional front ballast may be needed for transporting rear-mounted implements. When implement is raised, drive slowly over rough ground, regardless of how much ballast is used.
CAUTION:
Weights are heavy. Use proper lifting equipment. Approximate weight of starter weight (D) is : 20 kg (44 lb). Approximate weight of weights (B) are 20 kg (44 lb).
Specification
|
Starter Weight (Ballast)
-Weight
|
20 kg (44 lb) Each
|
|
Front Weight (Ballast)
-Weight
|
20 kg (44 lb) Each
|
1.
Install weights in pairs, one on each side of center (A).
2.
To hold weights in place, run retaining bolts (C) through holes from side-to-side. Tighten to specification.
Specification
|
Ballast Weights Retaining Nut
-Torque
|
245 N·m (180 lb-ft)
|
|
Starter Weight Bolts
-Torque
|
260 N·m (190 lb-ft)
|
|

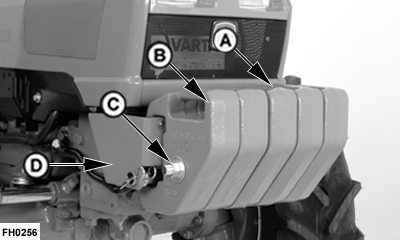

A-Ballast Center
B-Front Weights
C-Ballast Retaining Bolts
D-Starter Weight
|
