Convert Category II Hitch to Category I

If Category I implements are to be used, the Category II hitch can be converted as follows:

1. Rotate draft link balls (A) in draft link ends to reduce diameter of draft link ends to fit over implement pins.

2. Rotate center link ball (B) in center link end to reduce diameter of center link end to fit over implement pin.

See your John Deere dealer for parts.


A-Draft Link Ball (2 used)
B-Center Link Ball

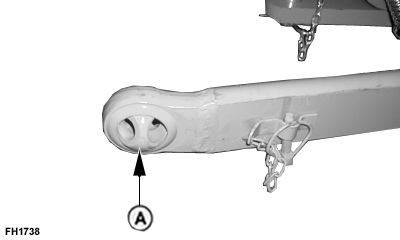

FH1738

Draft Link End

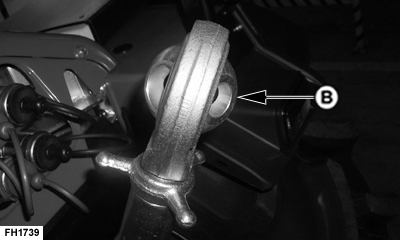

FH1739

Center Link End

SS40167,0000644 -19-02MAY08-1/1
