Adjust Rockshaft Control Lever Friction

If the rockshaft position control lever or rockshaft draft control lever do not stay in set position, increase lever friction by tightening the set screw (A) for the appropriate lever until the proper friction is obtained.

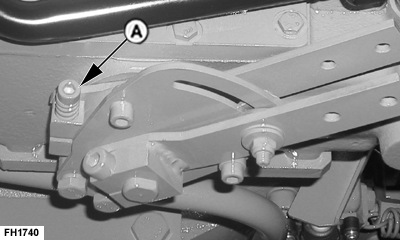

A-Adjustment Set Screw of Control Lever

SS40167,0000649 -19-17APR08-1/1
