Extend/Retract Cylinder-SCV I, SCV II and SCV III

Pull lever (A, B or C) to the rear of neutral and hold it against spring pressure. This extends cylinder (D) (up arrow) connected to (SCV I, SCV II or SCV III) coupler and in most cases raises implement. Lever returns to neutral when released.

Push lever (A, B or C) forward and hold it against spring pressure. This retracts cylinder (D) connected to (SCV I, SCV II or SCV III) coupler and in most cases lowers implement. Lever returns to neutral when released.

Push lever full forward into detent to operate Float feature. Float operation allows cylinder to extend and retract freely, such as when an implement follows ground contour.

IMPORTANT: When "Float" is not needed, manually move lever back to neutral position to prevent accidental use of "Float".

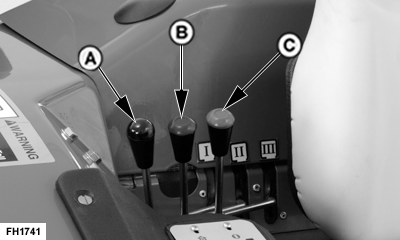

A-SCV I Control Lever
B-SCV II Control Lever
C-SCV III Control Lever

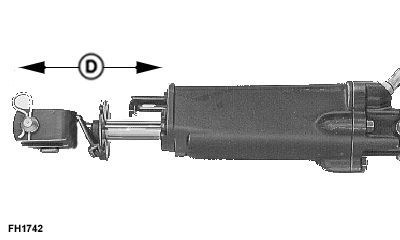

D-Extend and Retract Cylinder
