Shift Transmission

IMPORTANT: To prevent transmission damage, do not use speed shift on-the-go. To prevent unnecessary wear, never ride the clutch by resting a foot on the pedal.

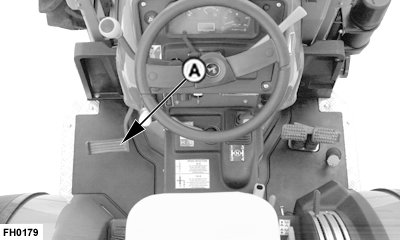

Depress clutch pedal (A) and stop tractor before shifting either range shift lever or gear shift lever. Release clutch pedal gradually to take up load smoothly.

A-Clutch Pedal
