Fill Fuel Tank

CAUTION: Handle fuel with care: It is highly flammable. DO NOT refuel the machine while smoking or when near open flame or sparks.

Always stop engine before refueling machine. Fill fuel tank outdoors.

Prevent fires by keeping machine clean of accumulated trash, grease and debris. Always clean up spilled fuel.

Fill fuel tank at end of each days operation. This prevents condensation in tank as moist air cools.

Specification

IMPORTANT: The fuel tank is vented through the filler cap. If a new filler cap is required, always replace it with an original vented cap.

NOTE: To reduce fuel gelling and control wax separation during cold weather, John Deere Fuel Flow Improver, or equivalent, may be added to fuel or bulk storage tank.

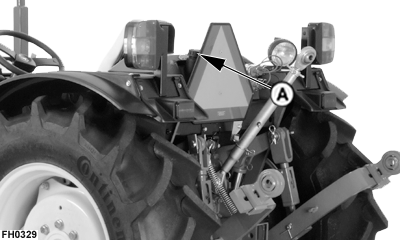

A-Fuel Tank Cap

SS40167,00009AB -19-22NOV07-1/1
