Light Switch Positions

Tractor light switch has five positions:

P- Turns on warning lights only. For driving on highway during daytime.

0- Turns off all lights.

1- Field position, turn on bright front headlights.

2- Turns on dim headlights, tail lights, and warning lights. Turn switch to this position before meeting other vehicles. For highway driving during day time and night time.

3- Turns on bright headlights, tail lights, and warning lights. For highway driving during day time and night time.

A-Push knob for horn.

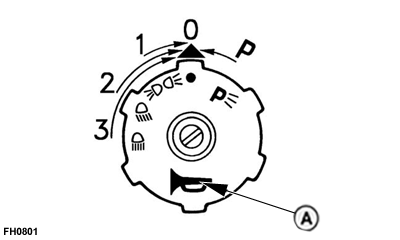

P-Warning Lights Position
-Turns Off
1-Field Light
2-Low-Beam Headlights, Tail Lights and Warning Lights Position
3-High-Beam Headlights, Tail Lights and Warning Lights Position
A-Horn

SS40167,00009E7 -19-16APR08-1/1
