Clean Fuel Filter

Replace fuel filter (C) at least once a year.

1. Remove fuel inlet line (A) and outlet line (B).

2. Rotate fuel filter (C) and outlet (B) and remove it.

3. Clean and install filter (C).

4. Connect fuel inlet line (A) and outlet line (B).

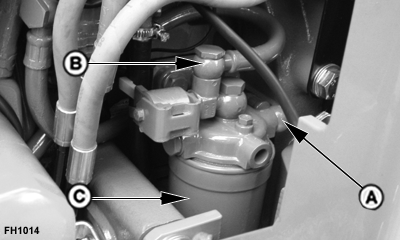

A-Fuel Inlet Line
B-Fuel Outlet Line
C-Fuel Filter

FH1014

SS40167,0000D57 -19-18APR08-1/1
