Change Coolant

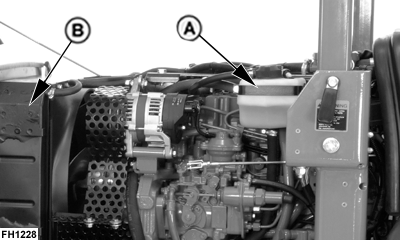

FH1228

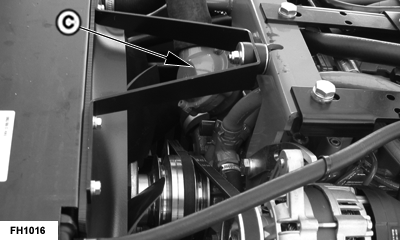

FH1016


A-Coolant Recovery Tank

B-Radiator

C-Thermostat Housing



Drain the coolant from radiator, engine and coolant recovery tank.

IMPORTANT: Never pour cold water into the cooling system of a hot engine, as it might crack cylinder block or head.

DO NOT operate engine without coolant for even a few minutes.

Close all opening of radiator and fill new coolant to specification.

Item Measurement Specification

85 F and 100 F

Coolant Capacity 11 L (2.90 gal)

SS40167,0000D5A -19-17APR08-1/1
