Check Transmission-Hydraulic System Oil Level

NOTE: While checking the oil level keep engine in OFF position.

1. Remove dipstick (A) and wipe it clean. Insert dipstick fully. Oil level should be between full mark and end of dipstick.

2. Add oil if level is low. (See Anti-Chatter Transmission/Hydraulic Oil in Fuels, Lubricants and Coolant section.)

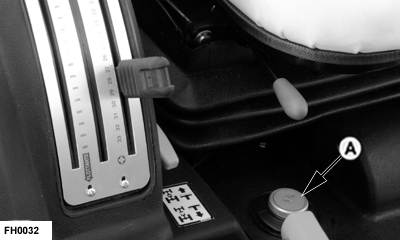

FH0032


A-Transmission-Hydraulic Oil Dipstick

SS40167,0000D5B -19-18APR08-1/1
