Remove Hood

1. Unlock the hood from hood latch release.

2. Tilt the hood to the front side.

3. Disconnect electrical connector (C)

4. Open the cap screw (A) with bracket (B), from the hood.

5. Now detach the hood (D) from the front support.

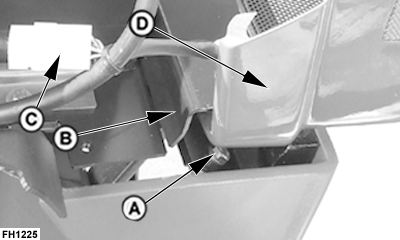

FH1225


A-Cap Screw
B-Plate
C-Electrical Connector
D-Hood

SS40167,0000D67 -19-22APR08-1/1
