Tractor Controls—Right-Hand Panel

P12967-UN-07APR04

P15297-UN-25MAR08

Cab Only

P9007B-UN-17DEC08

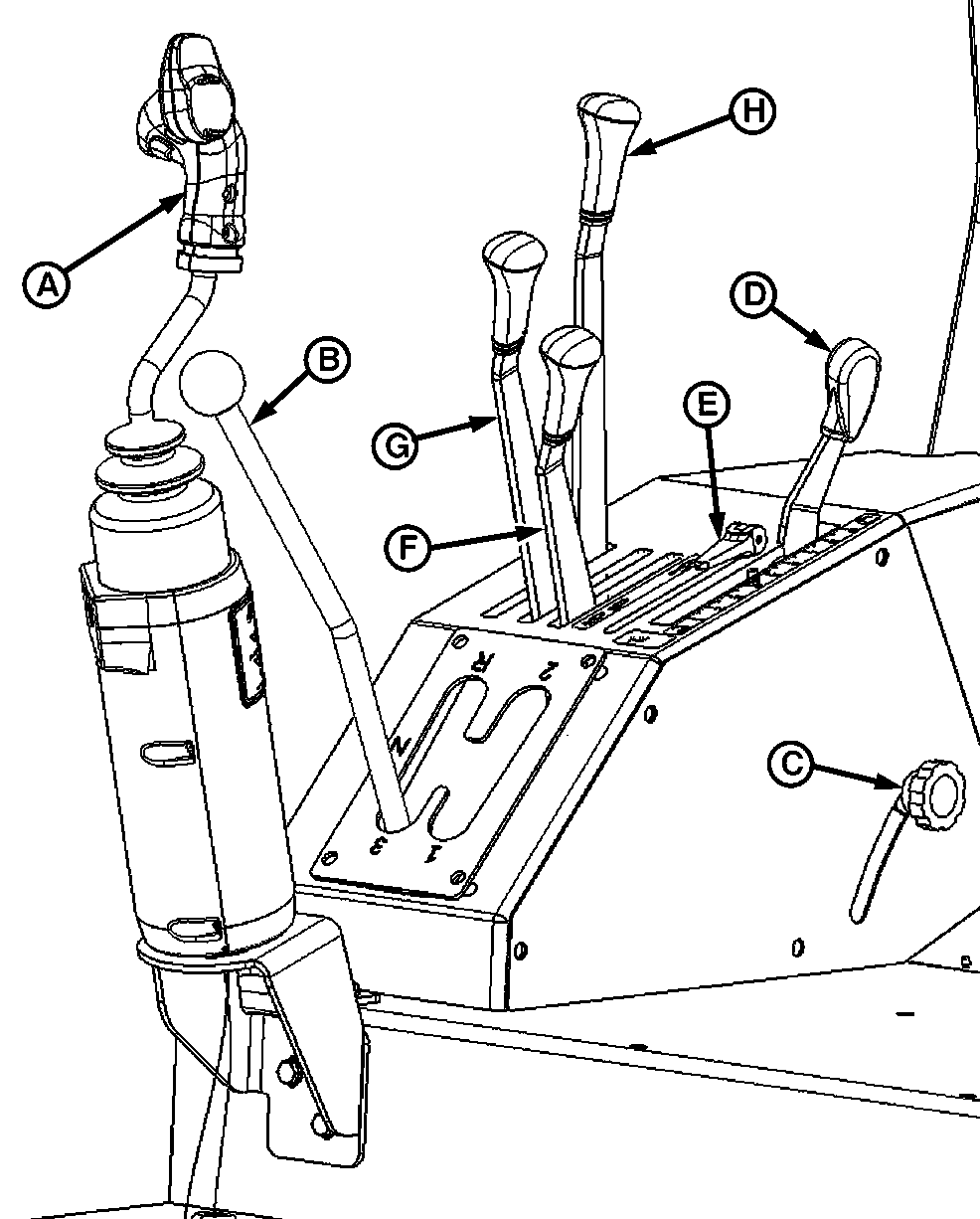

A - Multi-Function Control Lever (If Equipped)

B - Gear Shift Lever

C - Rockshaft Draft Control Knob

D - Rockshaft Position Control Lever

E - Position Control Stop Knob

F - SCV I Control Lever

G - SCV II Control Lever (If Equipped)

H - SCV III Control Lever (If Equipped)

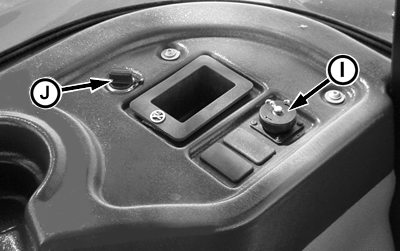

I - 12-Volt Accessory Electrical Outlet (Cab Only)

J - 12-Volt Power Outlet (Cab Tractor Shown)

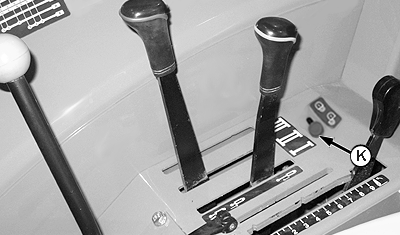

K - SCV Lockout¹
