Instrument Panel (PowrReverser™/Wet Clutch Tractors)

P15412-UN-09APR08

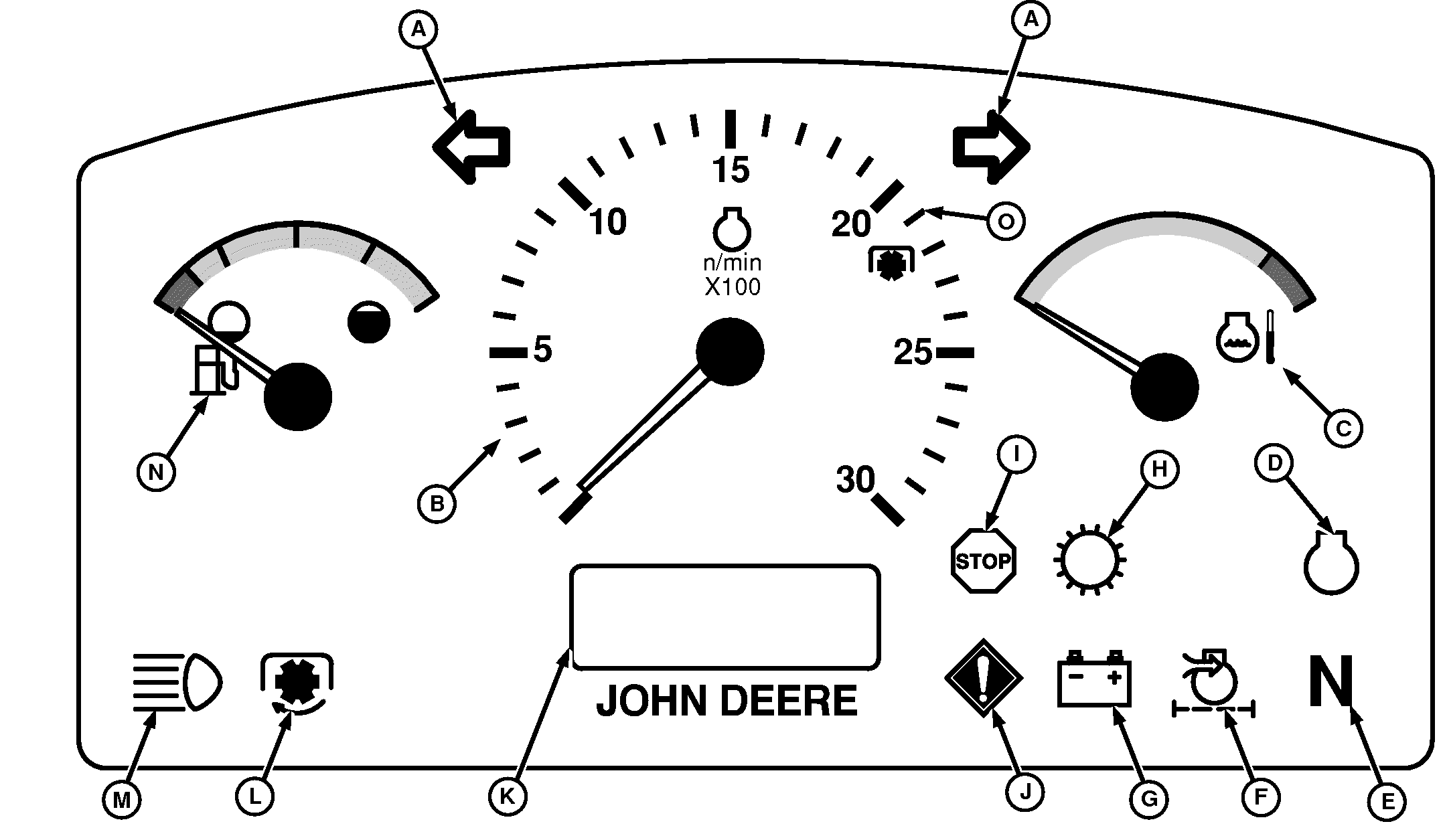

Instrument Panel (PowrReverser—Wet Clutch Tractors)

A - Turn Signal Indicators

B - Tachometer

C - Engine Coolant Temperature Gauge

D - Engine Information Indicator

E - Neutral Indicator

F - Engine Air Cleaner Restriction Indicator

G - Charging System Indicator

H - Transmission Information Indicator

I - STOP Indicator

J - Service Alert Indicator

K - Hour Meter/Ground Speed (LCD Digital)

L - PTO Engaged Indicator

M - Headlight High Beam Indicator

N - Fuel Level Gauge

O - Rated PTO Speed Indicator

NOTE: Hour Meter/Ground Speed (LCD Digital) (K) displays hours when tractor is not moving. When tractor is moving, display switches to ground speed. When tractor is stopped, display changes back to hours.
