Using Headlights

P15323-UN-27MAR08

P12943A-UN-04JUL05

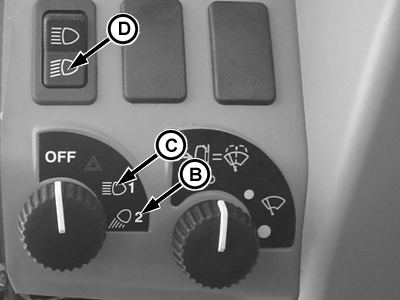

Cab Switch Shown

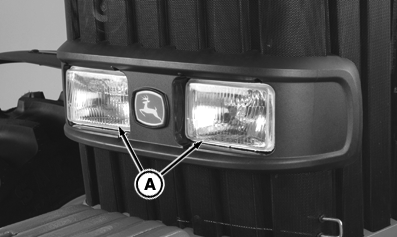

A - Headlights

B - Field Lights

C - Road Lights

D - High/Low Beam Switch

CAUTION: Never use flood lights when driving on roads. Dim headlights for oncoming traffic. Bright lights could blind or confuse other drivers.

Dual-beam headlights (A) are used for highway driving, day or night. They are turned on in position 1 (C) or 2 (B) with the light switch.

Always dim headlights by moving high/low beam switch (D) to low beam position when meeting another vehicle.

Keep headlights adjusted properly. (See ADJUST HEADLIGHTS in Maintenance—Electrical System section.)
