High Beam Indicator

P14836
P14836-UN-19NOV07

P13883A
P13883A-UN-11NOV08

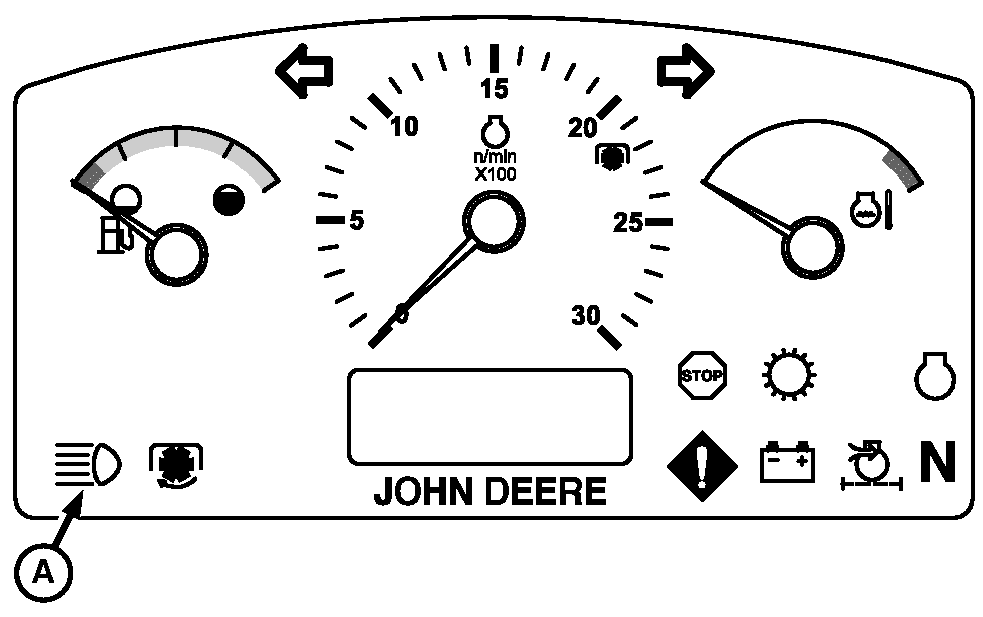

A - High Beam Indicator

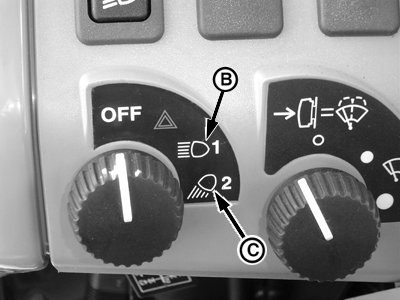

B - Position 1

C - Position 2

High beam indicator (A) should glow with key in ON or OFF position and light switch in following positions:

  • Road lights (Position 1) and high/low beam switch UP
  • Field lights (Position 2)

NS43404,0000433-19-20080119
