Using Floodlights—OOS (If Equipped)

P14839-UN-20JAN08

P14840-UN-20JAN08

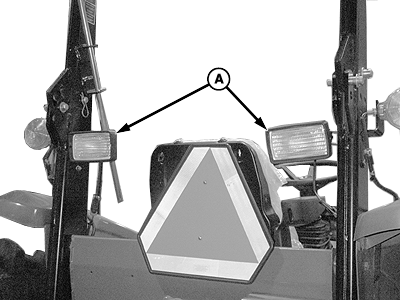

A - Floodlights

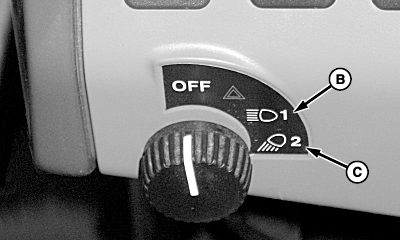

B - Road Lights-1

C - Field Lights-2

CAUTION: Rear-facing floodlights may blind or confuse driver of other vehicles approaching from behind. When driving or transporting tractor on public roads, use road lights only (switch position 1) (B).

Floodlights (A) are for field work only. Do NOT use when driving on public roads. Floodlights are on when switch is turned to field light position (C).
