Using Turn Signals

P14851-UN-10APR08

Cab Shown

P14853-UN-26JAN08

OOS

P14852-UN-26JAN08

Cab

P15473-UN-10APR08

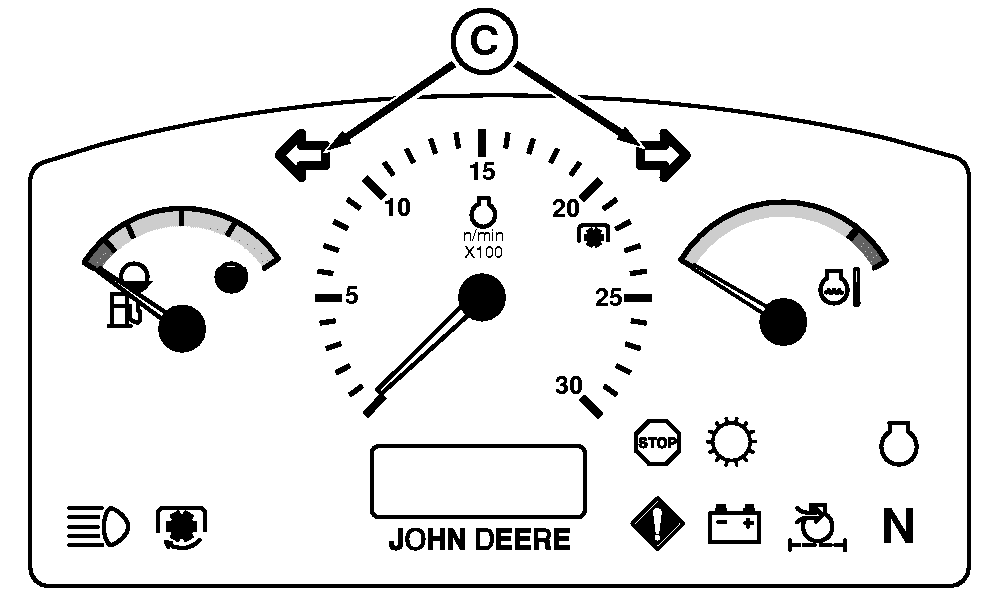

Instrument Panel

A - Turn Signal Lever

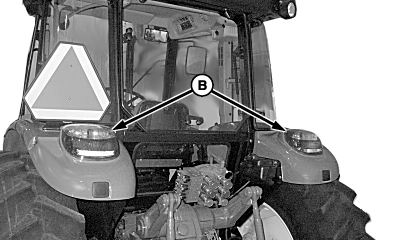

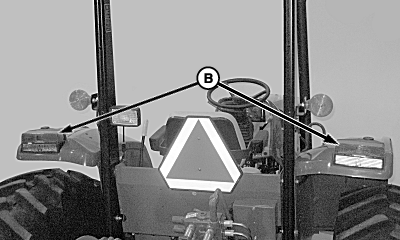

B - Turn Signal Lights

C - Directional Arrows

With key in RUN position, move turn signal lever (A):

• DOWN—Left-hand turn
• UP—Right-hand turn

NOTE: Make sure to manually return lever to CENTER position after turning.
