Adjusting Seat (If Equipped)

CAUTION: To avoid accidents, adjust seat before driving.

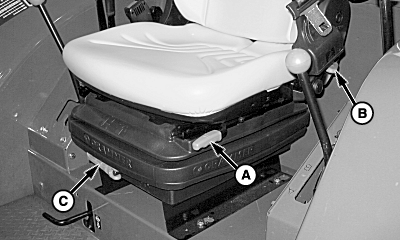

P14885-UN-21NOV07

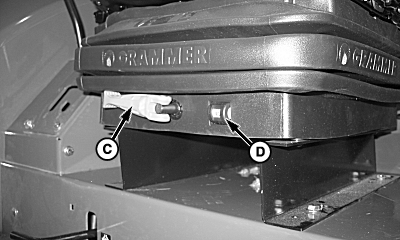

P14886-UN-21NOV07

A - Forward/Backward Adjustment Lever

B - Backrest Adjustment Lever

C - Weight Adjustment Lever

D - Display Window

Backrest: Lift lever (B) and tilt backrest to desired position. Release lever to lock in place.

Weight: Rotate lever (C) away from seat and turn:

• Clockwise—Increase load
• Counterclockwise—Reduce load

Desired weight setting appears in display window (D). Weight level range is 50-130 kg (110-285 lbs.). Rotate lever toward seat when done.

IMPORTANT: Internal damage could occur to the seat mechanism. When turning weight adjustment lever to reduce load; stop turning handle when seat reaches minimum weight adjustment position and handle resistance increases.

NOTE: Suspension should not bottom out when properly adjusted.

Height: To adjust the seat upward, lift seat pan until it clicks into place (maximum of 3 detent positions). To adjust downward, lift the seat to the stop position and then lower it.
