Check Instruments After Starting (PowrReverser™ and Wet Clutch Tractors)

P14859-UN-19NOV07

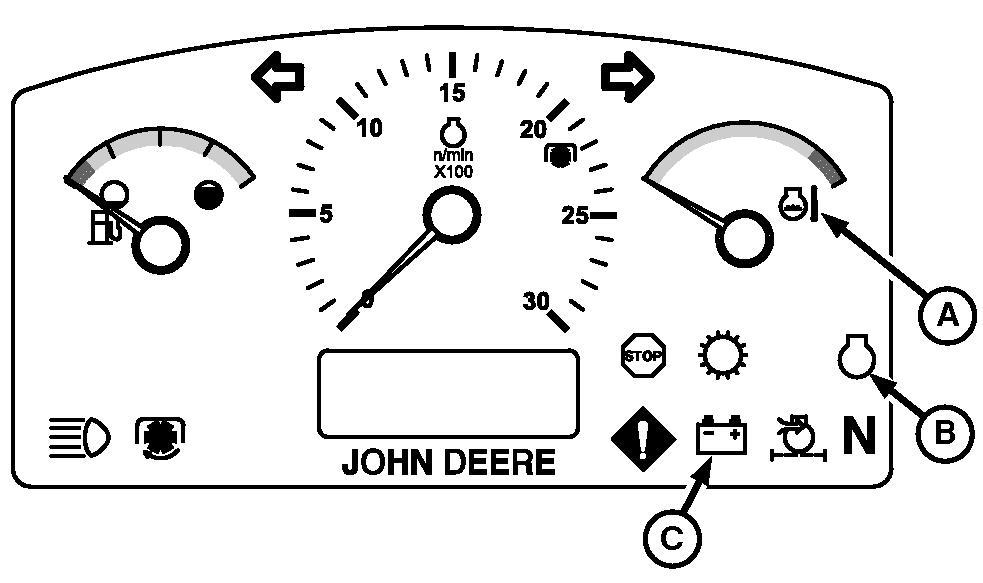

Instrument Panel PowerReverser/Wet Clutch Tractors

A - Coolant Temperature Gauge

B - Engine Information Indicator

C - Charging System Indicator

IMPORTANT: If coolant temperature gauge (A) goes into the red zone, or either oil pressure or charging system indicators (B or C) remain on, stop engine and determine the cause.
