Charging System Indicator

P14865
P14865-UN-19NOV07

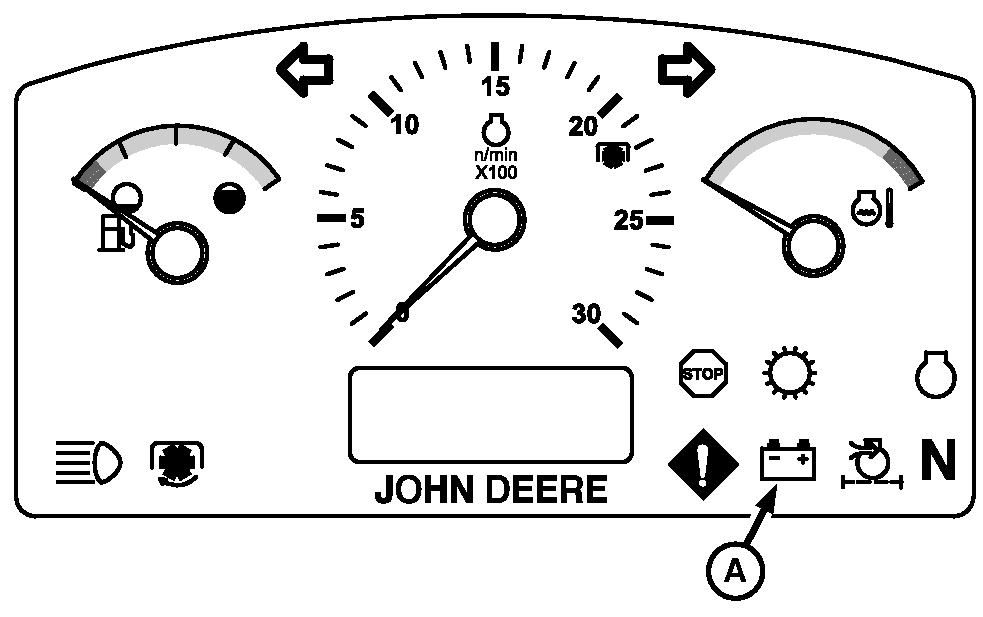

A - Charging System Indicator

Charging system indicator (A) will light when alternator output is low. Indicator should light when key is turned to RUN position and go out when engine starts.

If indicator stays on for longer than five seconds in normal operation, stop engine and check for cause. If loose or broken fan belt is not the cause, see your John Deere dealer.

NS43404,000045F-19-20080130
