Coolant Temperature Gauge

P14867
P14867-UN-19NOV07

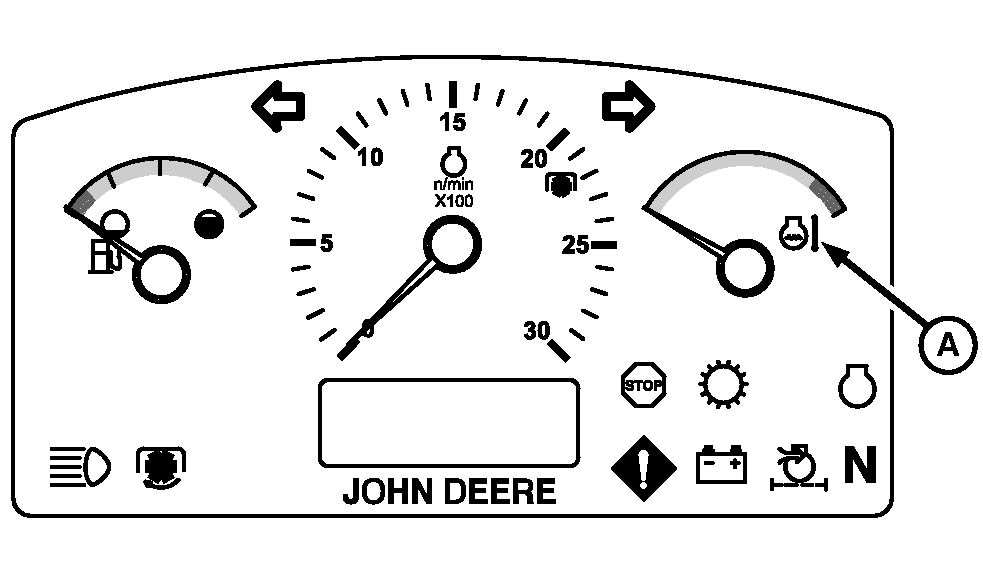

A - Coolant Temperature Gauge

The needle on coolant temperature gauge (A) rises as engine warms up. If needle reaches red zone, stop engine and determine the cause.

CAUTION: Do not remove reservoir cap until coolant has had a chance to cool down. Always loosen reservoir cap slowly to relieve any excess pressure.

P15301
P15301-UN-03NOV10

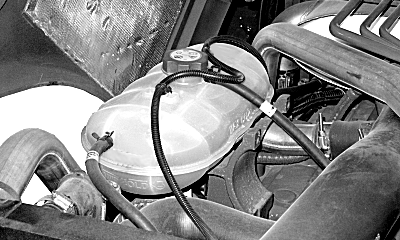

Check coolant level in coolant reservoir when engine cools. Also check front grille, radiator and radiator side screens for plugging. Check fan belt tension. If problem is not corrected, see your John Deere dealer.

NS43404,0000461-19-20080327
