Fuel Level Gauge

P14868
P14868-UN-19NOV07

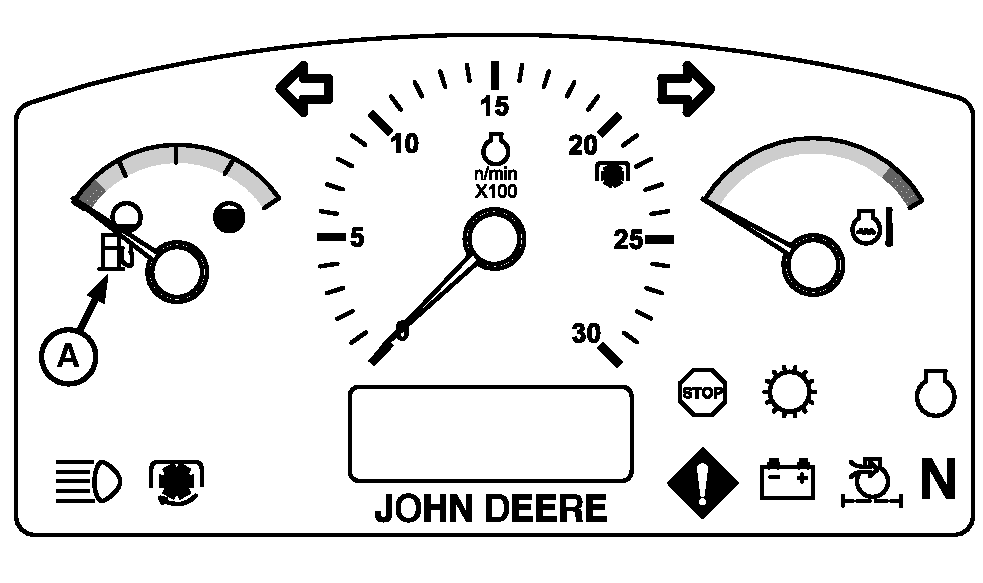

A - Fuel Level Gauge

Stop to refuel before gauge (A) reaches empty mark.

IMPORTANT: Use diesel fuel only. (See Fuels, Lubricants and Coolant section for fuel specifications.)

Should tractor run out of fuel and not start in several tries, bleed air from fuel system. (See BLEED FUEL SYSTEM in Maintenance—Fuel System section.)

NS43404,0000462-19-20080130
