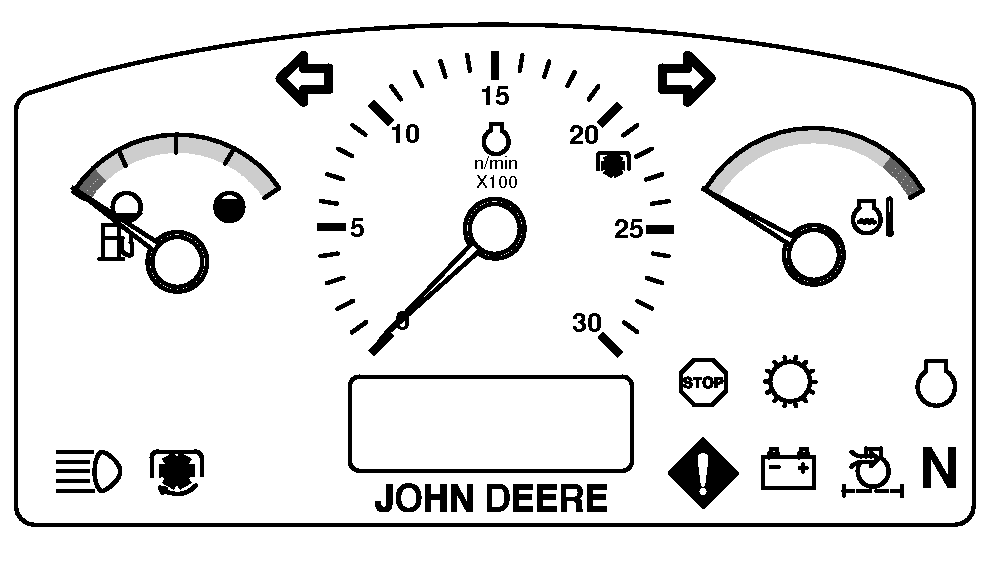

Observe Engine Work and Idle Speeds

P14525-UN-22NOV07

Slow idle speed should be 850 or 900 rpm depending on model. At light or no load, full throttle speed will increase to 2200 or 2275 depending on model. See slow and fast idle in Specifications Section.

Normal working speed is 1600—2100 rpm rated speed. Within these limits, engine can be put under full load.

IMPORTANT: When using tractor under heavy loads, always use full throttle (maximum engine rpm), do not set throttle at low speeds to work with heavy tillage or implements requiring high power.
