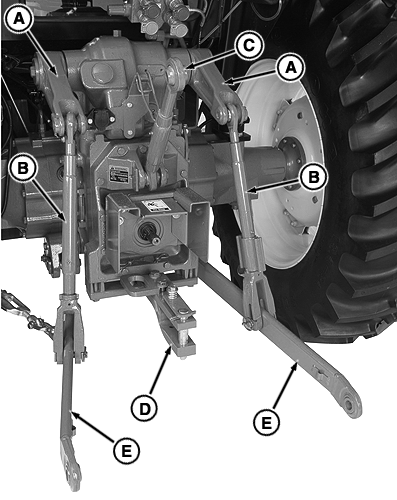

3-Point Hitch Component Identification

P15332-UN-27MAR08

OOS Shown

A - Lift Arms

B - Lift Links

C - Center Link

D - Drawbar

E - Draft Links

IMPORTANT: Tractor power should be matched to the size of certain implements. Excessive power can damage an implement, and too large an implement can damage the tractor. (Refer to your implement operator's manual for minimum and maximum power requirements before attaching an implement.)
