Adjusting Rockshaft Rate-of-Drop

CAUTION: Excessive rate-of-drop may cause damage to equipment or injury to machine operator. Fully lowering implement should require at least two seconds.

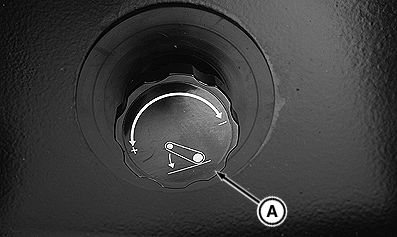

P15289-UN-12MAR08

Floor Behind Seat

A - Rockshaft Rate-of-Drop Knob

Rockshaft drops faster when a heavy implement is attached. Adjust rate-of-drop knob (A) so that it is slow enough to be safe and prevent implement damage.

Adjust rockshaft rate-of-drop. Turn knob:

• Clockwise—Slow rate-of-drop
• Counterclockwise—Fast rate-of-drop

Adjust rockshaft position:

• Lock—Turn knob clockwise to the stop
• Unlock—Turn knob counterclockwise and readjust rate-of-drop
