Adjusting Lateral Float

P11549
P11549-UN-26JUL02

P11550
P11550-UN-26JUL02

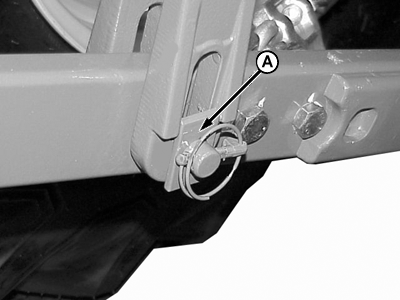

A - Pin in Vertical (Float) Position

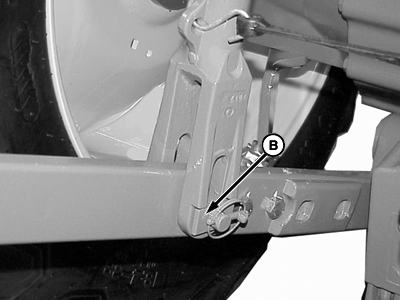

B - Pin in Horizontal (Rigid) Position

To allow the draft link to raise slightly as implement follows ground contour, place head of pin and rectangular washer (A) in vertical position.

To hold implement rigid, place head of pin and rectangular washer (B) in horizontal position.

Vertical (float) position: Hitch-mounted implements (cultivator or mower), equipped with ground gauging skids or wheels which may cause the implement to twist relative to the tractor.

Horizontal (rigid) position: Plows and ground engaging implements that should not twist relative to the tractor.

NS43404,0000483-19-20080204
