Attaching PTO-Driven Implement

CAUTION:

TS1644-UN-22AUG95

Keep tractor master shield and driveline shields in place at all times. Make sure rotating shields turn freely.

Wear close fitting clothing. Stop the engine and be sure PTO driveline is stopped before making adjustments, connections, or cleaning out PTO driven equipment.

To avoid injury, stop engine before attaching implement or working in area of implement hitch.

1. Stop engine and remove key. (See procedure in Operating the Engine section.)

2. IMPORTANT:


   P15237-UN-07FEB08

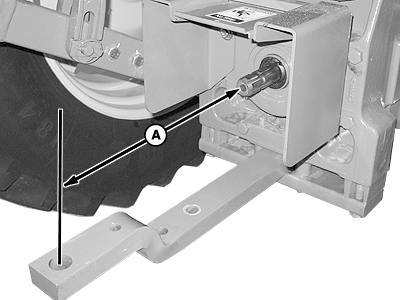

   A - PTO Shaft-to-Pin Hole Distance

   If equipped, remove clevis assembly on drawbar when using PTO-driven equipment.

   The drawbar must be in extended hole position to attach PTO-driven implement.

   Short position hole should never be used for PTO-driven implement.

   Lock drawbar in center, no-sway position. (See ADJUSTING DRAWBAR SIDE-TO-SIDE in this section.)

---




3. Put drawbar in EXTENDED position. (See ADJUSTING DRAWBAR LENGTH in this section.)

4. Remove clevis assembly, if equipped.

   PTO Shaft	Distance from PTO Shaft End to Hitch Pin Hole (A)
   540 rpm - 6 Splines1	356 mm (14.0 in.)
   1000 rpm - 21 Splines1	406 mm (16.0 in.)

5. Attach implement to drawbar before connecting PTO driveline. Raise hitch to full-up (transport) position if not used.

   If implement will be connected to 3-point hitch, be sure drawbar will not interfere. Remove if necessary.

6. Lift up PTO shield (if equipped).

7. Turn PTO shaft by hand to line up splines. Connect driveline to PTO shaft. Pull out on shaft to be sure driveline is locked to PTO shaft.

8. Lower PTO shield (if equipped) to centered position.

9. Check for interference.
