Operating Tractor PTO

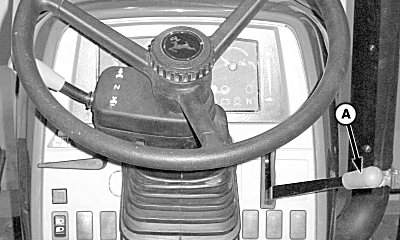

P14828-UN-15APR08

A - Hand Throttle Lever

NOTE: Engine will not start if PTO control lever is engaged.

1. Depress clutch pedal, start engine and push hand throttle lever (A) forward until engine tachometer indicates PTO rated speed of 2100 rpm.

2. NOTE: If operator is NOT on seat when PTO lever is ENGAGED:

   • OOS: Operator Alert Indicator (C) will turn ON
   • Cab: Audible alarm will sound




   P15334-UN-19DEC08

   Left-Side Panel

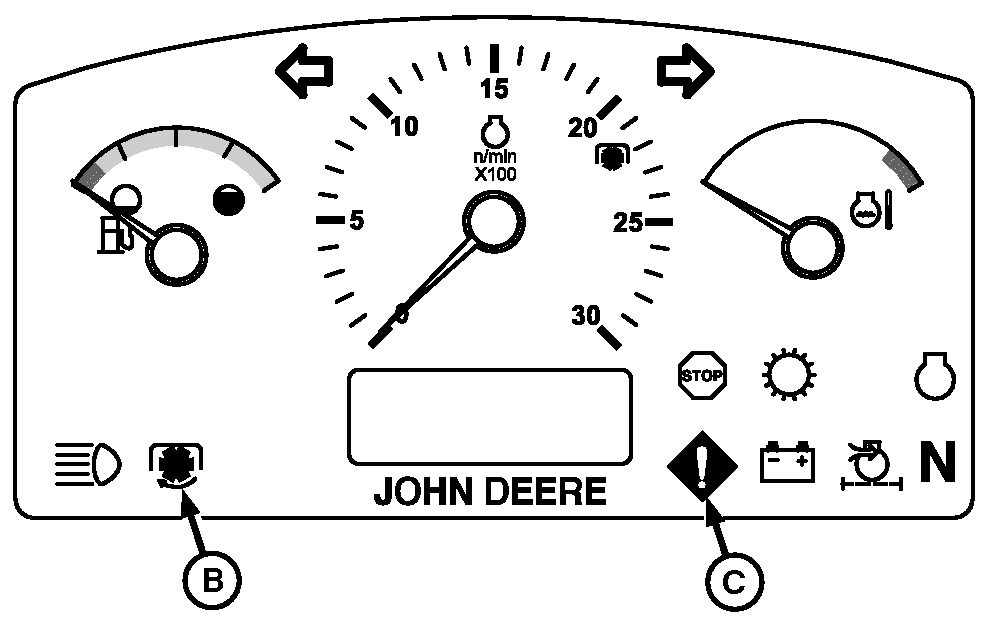

   P15241-UN-07FEB08

   A - PTO Control Lever

   B - PTO Indicator Light

   C - Operator Alert Indicator

   Move control lever (A) forward to engage PTO. Indicator light (B) will turn on when PTO is engaged.

---




3. CAUTION: Avoid personal injury. Stop engine and allow PTO driveline to stop before adjusting, connecting or cleaning PTO-driven implement.

   To avoid entanglement with rotating shaft, always disengage PTO when not in use.

   Pull control lever back to disengage PTO.
