Determine PTO Clutch Linkage Adjustment Procedure

P10531A-UN-28JUL04

P10531B-UN-28JUL04

A - Distance

IMPORTANT: Do NOT adjust PTO clutch linkage until the engagement lever slot in operators station is measured. If incorrect adjustment procedure is performed, premature failure to PTO clutch throw out bearing can occur.

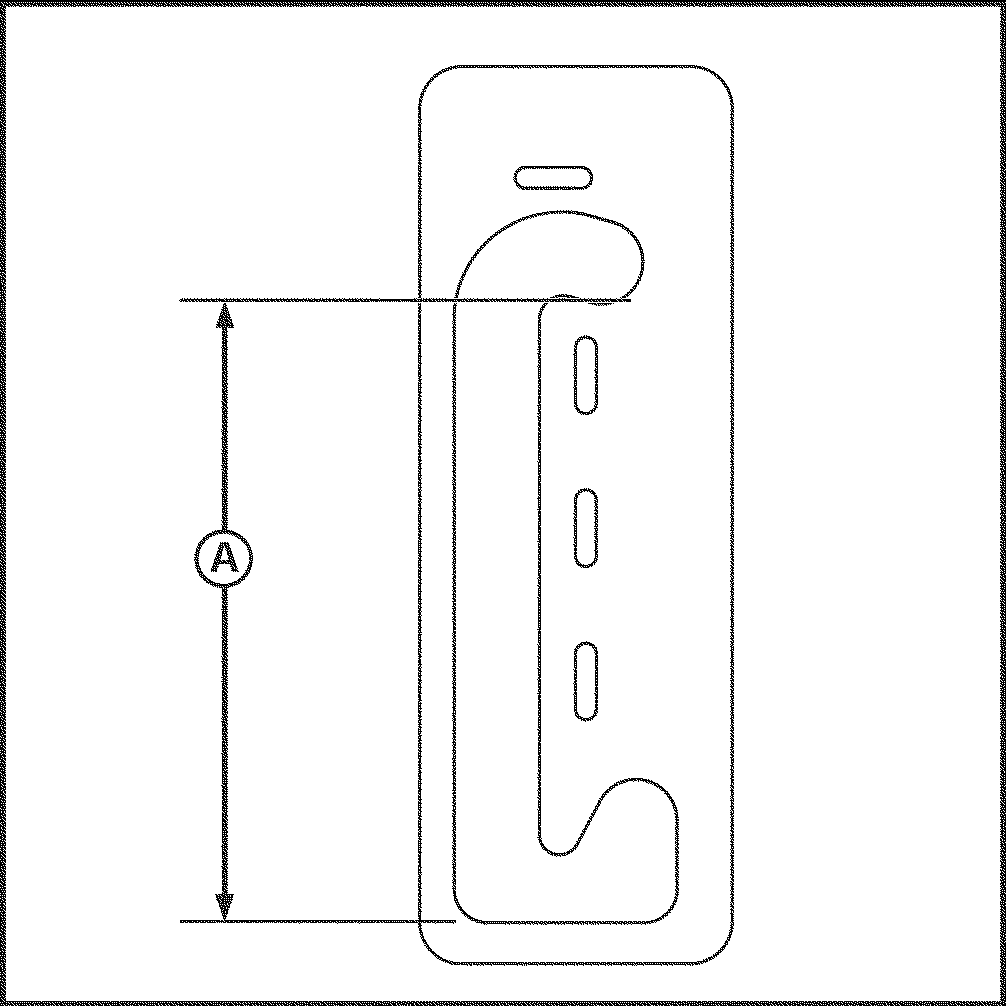

1. Measure the distance (A) of engagement lever slot.

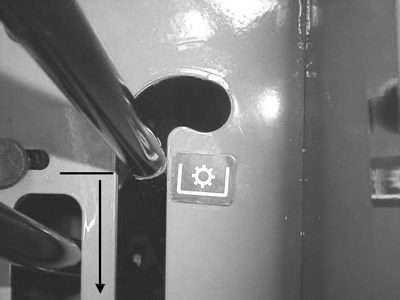

2. Move the PTO lever forward in console slot until a slight increase in resistance is felt (this is the point where all free travel has been removed from PTO clutch linkage). Take care of not touching the edge of slot with lever, since this could mislead the position. Put a mark on console for future reference.

3. Measure the distance from the previous mark to end of engagement slot.

4. The difference between the two distances taken during Step 1 and Step 3 should be 21—27 mm (0.827—1.063 in.). This assures the proper PTO clutch linkage free travel of 3 mm (0.118 in.). Adjust PTO clutch linkage, if necessary. (See procedure in this section.)
