Ballasting Front End for Transport

CAUTION: Additional front ballast may be needed for transporting rear-mounted implements. When implement is raised, drive slowly over rough ground, regardless of how much ballast is used.

CAUTION: Weights are heavy. Use proper lifting equipment.

P15327-UN-27MAR08

P15328-UN-27MAR08

P15324-UN-27MAR08

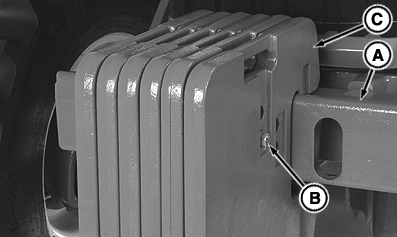

A - Front Weight Support

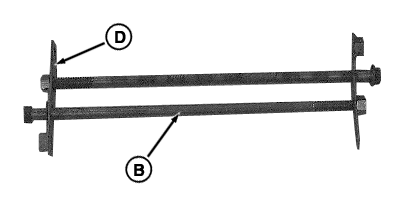

B - Retaining Bolt (2 Used)

C - Additional Weights

D - Retainers and Nuts (2 Used)

Front weight support (A) and additional weights can be installed.

Item	Measurement	Specification
Front Weight Support	Weight	84 kg (185 lb)
Additional Weight	Weight (each)	47 kg (104 lb)

1. Install desired number of weights (C) on front weight support, up to maximum allowed.

   • 18 Total Additional Weights



2. To hold weights in place, insert two retaining bolts (B) in opposite direction, one right-to-left, the other left-to-right. Place retainers (D) as shown. Tighten retaining bolts to specification.

   Item	Measurement	Specification
   Weight Retaining Bolt	Torque	230 N·m (170 lb-ft)
