Tighten Bolts—MFWD Axle

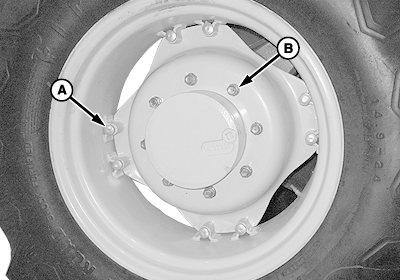

P15211-UN-26JAN08

A - Wheel Rim-to-Disk Bolts (8 used each side)

B - Wheel Disk-to-Axle Flange Bolts (8 used each side)

Item	Measurement	Specification
Wheel Rim-to-Disk Bolts	Torque	245 N·m (180 lb-ft)
Wheel Disk-to-Axle Flange Bolts	Torque	300 N·m (220 lb-ft)
