Tighten Bolts—Rear Axle

P9188-UN-16MAR01

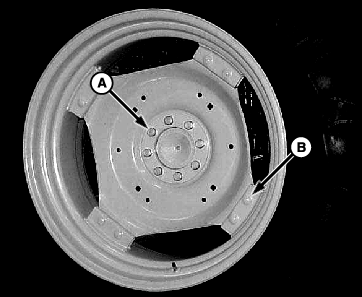

Steel Disk

A - Wheel Disk-to-Axle Flange Bolts (8 used each side)

B - Wheel Rim-to-Disk Bolts (8 used each wheel)

Item	Measurement	Specification
Wheel Rim-to-Disk Bolts	Torque	310 N˙m (230 lb-ft)
Wheel Disk-to-Flange Bolts (Steel Disk)	Torque	500 N˙m (370 lb-ft)
