Tread Settings—Adjustable Front Axle (2WD Axle)

P9190A-UN-08JUL05

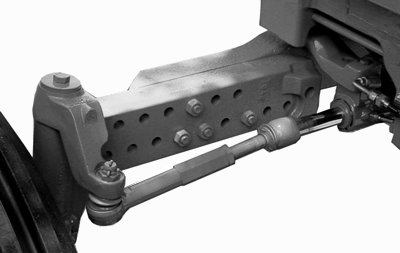

Adjustable Front Axle with 102 mm (4 in.) Extension

LV1515-UN-05MAR96

Each side of the front axle can be adjusted in increments of 51 mm (2 in.). Make sure adjustment is equal on both sides.

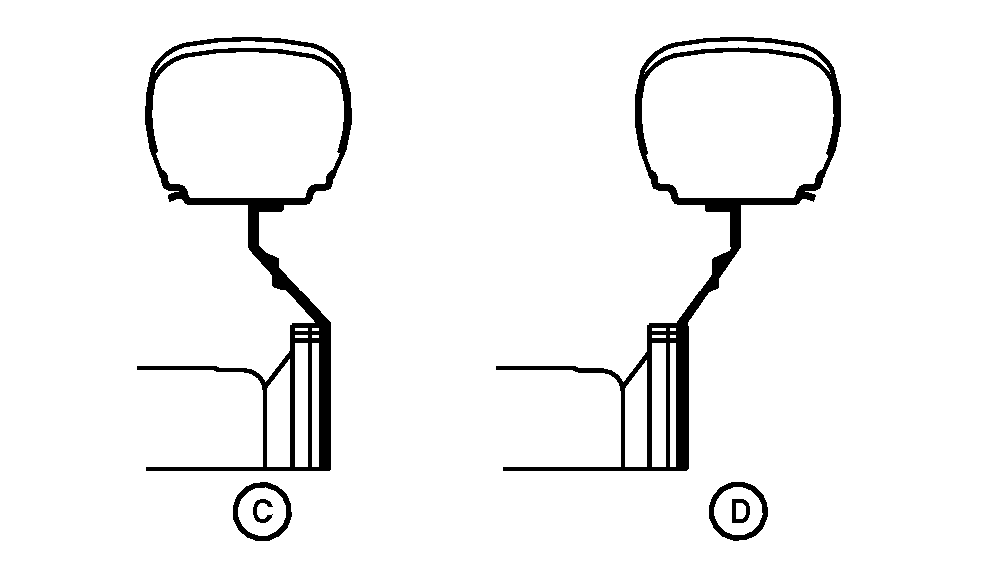

Wheel rim can be positioned as shown by (C) or (D) in the diagram. Positioning wheel rim as (D) provides an additional 44 mm (1.75 in.) tread width.

NOTE: Number 1 wheel position corresponds to axle adjustment at most inward location, resulting in narrowest tread.

The extension provided with the tractor is 102 mm (4 in.) long. Contact your John Deere dealer to order the optional 204 mm (8 in.) extension.

NOTE: Replace 102 mm (4 in.) extension with optional 204 mm (8 in.) extension. Do NOT use together.

TREAD WIDTH Centerline-to-Centerline
Tire Size	10.00-16
Wheel Position	C	D
1 Without Extension	—	1533 mm (60.4 in.)
2 Without Extension	1591 mm (62.7 in.)	1635 mm (64.4 in.)
3 With 102 mm (4 in.) Extension	1693 mm (66.7 in.)	1737 mm (68.4 in.)
4 With 102 mm (4 in.) Extension	1795 mm (70.7 in.)	1839 mm (72.4 in.)
5 With Optional 204 mm (8 in.) Extension	1896 mm (74.7 in.)	1941 mm (76.4 in.)
6 With Optional 204 mm (8 in.) Extension	1998 mm (78.7 in.)	2043 mm (80.4 in.)
