Adjusting Front Wheel Tread (2WD Axle)

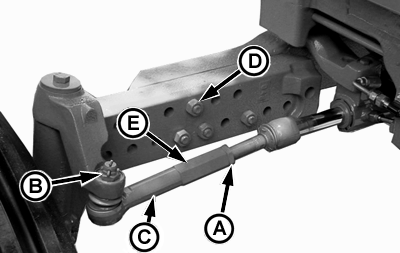

P12349A-UN-08JUL05

Front Axle With Extension

A - Nut

B - Slotted Nut

C - Tie-Rod

D - Bolt and Nut (4 used each side)

E - Tie-Rod Extension

1. IMPORTANT: Do not place jack under engine oil pan.

   Jack up front end of tractor.

2. Loosen nut (A). Remove cotter pin, slotted nut (B) and tie-rod (C).

3. Remove extensions (E), if equipped, to obtain a minimum of 1700 mm (66.9 in.) tread width.

4. Remove axle bolts and nuts (D).

5. Reposition axle ends to the desired front wheel tread. Install axle bolts and nuts. Tighten to specification.

   Item	Measurement	Specification
   Front Axle Nuts	Torque	400 N˙m (295 lb-ft)

6. Adjust (C and E) as required. Tighten nut (A).

7. Install slotted nut and cotter pin .

8. When making large tread adjustments, it may be necessary to adjust toe-in. (See procedure in this section.)
