Front Fender Adjustment (MFWD Axle)

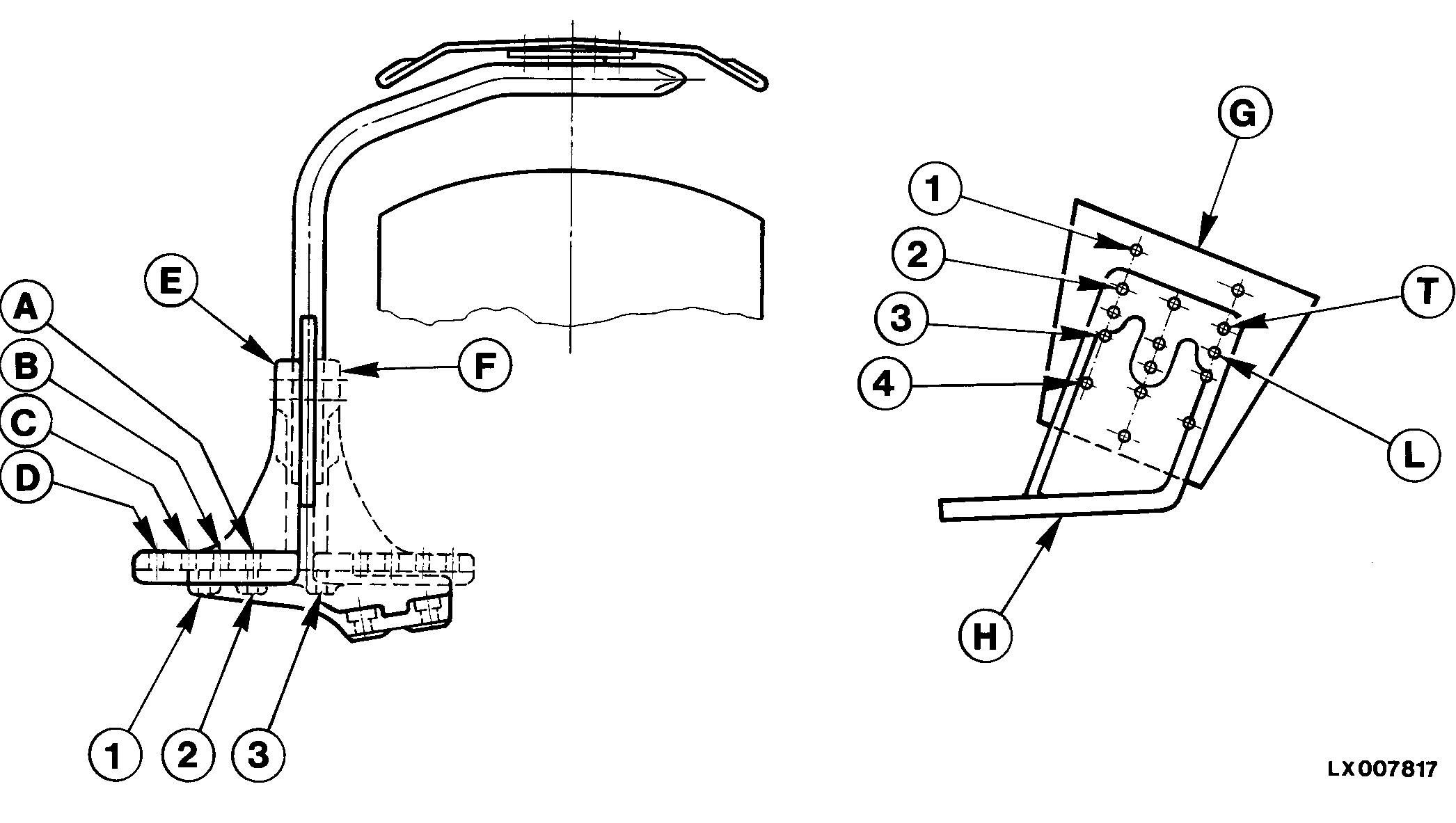

LX007817-UN-16AUG94

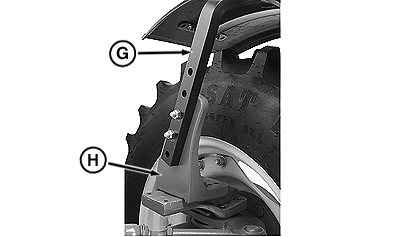

P15337-UN-28MAR08

E - Bracket Facing Out

F - Bracket Facing In

G - Fender

H - Bracket

Fenders must be installed in correct position depending on tire size and tread width. Fender width is 400 mm (15.7 in.). The following table indicates correct position for a given tire size, wheel and rim disk position.

Explanation of Table Positions

D-2—Indicates which holes (1, 2, or 3 and A, B, C or D) are bolted together.

NOTE: Every time bracket position is reversed, left-hand side bracket must be installed on right-hand side of tractor and vice versa.

L/2—Shows whether upper (T) or lower (L) bracket holes must be used, together with corresponding holes (1, 2, 3 or 4) in fender.

NOTE: Upper holes (T) in bracket are not used in this particular machine and tire sizes.

Fender Position and Height—indicates correct fender position and height on axle, for example : D-2 , L3.

Position of Adjustable Rims and Wheel Disks
		A	B	C	D	E	F	G
Tire Size
13.6-24	Fender Position	N/A	A-2, L/3	B-3, L/3	B-1, L/3	B-2, L/3	D-2, L/3	C-3, L/3
14.9-24	Fender Position	N/A	N/A	B-3, L/4	A-3, L/4	C-1, L/4	A-3, L/4	C-3, L/4
