Adjust Brake Pedal Free Travel

P9095-UN-28SEP00

P11553-UN-26JUL02

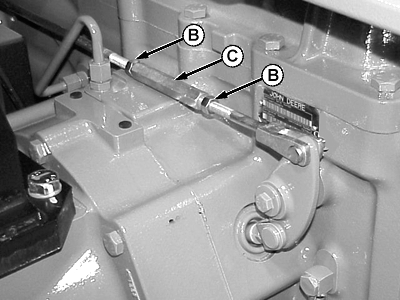

Left-Hand Side Shown

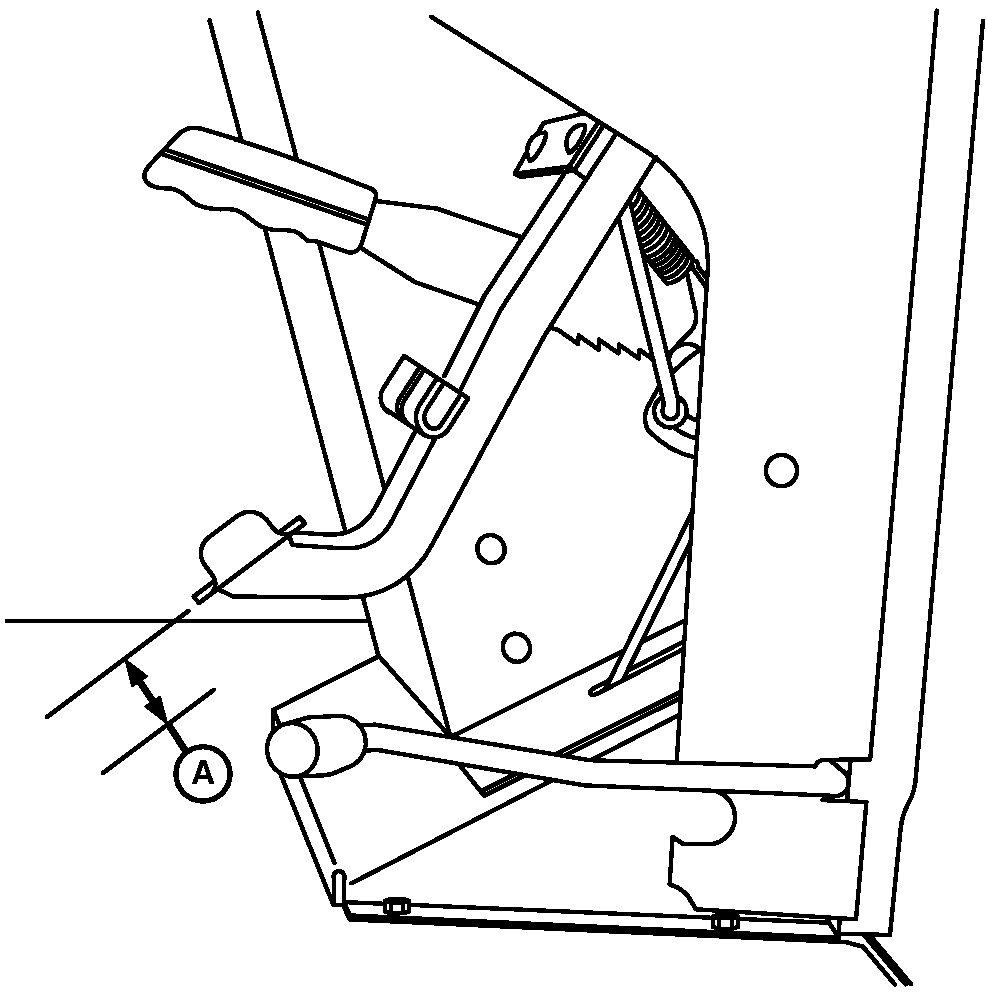

A - Brake Pedal Travel

B - Jam Nuts

C - Turnbuckle

Service Interval—250 Hours

1. Park on level surface. Chock wheels to prevent machine movement.

2. Unlock brake pedals.

3. Apply approximately 10 kg (20 lb) force on one brake pedal and measure distance (A) between engaged pedal and disengaged pedal. If free travel is not within specification, adjust linkage.

   Item	Measurement	Specification
   Brake Pedal	Free Travel	70 ±3 mm (2.75 ±0.12 in.)

4. Adjust each brake pedal separately. Each side of tractor has an adjustment rod with turnbuckle and jam nuts. To adjust linkage, on each side of turnbuckle (C).

   1. Loosen jam nuts (B).

   2. Rotate turnbuckle (C) as needed to increase or decrease tension on adjustment rod in order to obtain free travel specification.

   3. Tighten jam nuts.

5. Repeat on opposite side.
