Change Engine Oil and Filter

P14499-UN-14FEB08

Left-Hand Side

P14500-UN-30OCT07

P14501-UN-30OCT07

Right-Hand Side

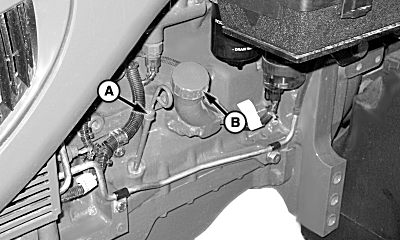

A - Dipstick

B - Filler Cap

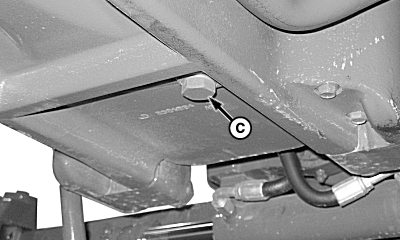

C - Drain Plug

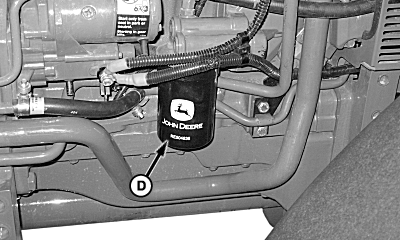

D - Oil Filter

Service Interval
	Initial—100 Hours
	Regular—250 Hours*
	Regular—500 Hours**
	* 250 hours when using any lubricant other than TorqGARD or PLUS 50.
	** 500 hours when using John Deere TorqGARD or PLUS 50 lubricant and filter.

1. If engine has not been running, start engine and let it run at low idle for 2—3 minutes. Stop engine and wait 2—3 minutes for oil to drain back into oil sump.

   If engine has been running, slow speed down to low idle and let it run for 2—3 minutes. Stop engine and wait 2—3 minutes.

2. Remove filler cap (B).

3. Remove plug (C) and drain oil.

4. Remove engine oil filter (D).

5. Apply a film of oil on new oil filter gasket and install filter. Hand-tighten plus 1/2 turn.

6. Install and tighten drain plug.

7. NOTE: Oil levels within the crosshatch are considered in the acceptable operating range. Cross-hatch area is considered FULL.

   Add oil.

   Item	Measurement	Specification
   Engine Crankcase Oil with Filter	Capacity	15 L (16 qt)

8. Start engine and check for leaks.

9. Stop engine and remove key. Recheck oil level.
