Replace Transmission-Hydraulic Oil Filter

P15394
P15394-UN-07APR08

P15271
P15271-UN-07APR08

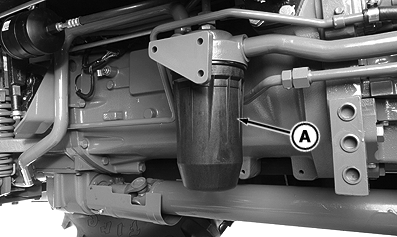

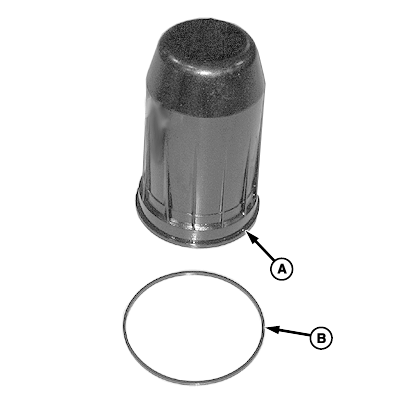

A - Filter Housing Assembly

B - Filter O-Ring Seal

Service Interval

Initial—100 Hours

Regular—500 Hours

  1. NOTE: Replace hydraulic filter housing and filter as a complete assembly.

    Remove filter housing assembly (A) and filter seal (B).

  2. Discard filter housing assembly (A) and O-ring seal (B).

  3. Inspect new filter assembly and seal for any possible damage.

  4. Apply hydraulic oil to new filter O-ring seal (B) and install on filter assembly.

  5. Install new filter assembly and tighten to specification.

    ItemMeasurementSpecification
    Hydraulic Oil FilterTorque24 N˙m (212 lb-in)

  6. Run engine for five minutes.

  7. Shut off engine and check oil level. Add hydraulic as required. (See CHECK TRANSMISSION-HYDRAULIC OIL LEVEL in this section.)

NS43404,00004F6-19-20080407
