Lubricate Steering Linkage

P14506-UN-16FEB08

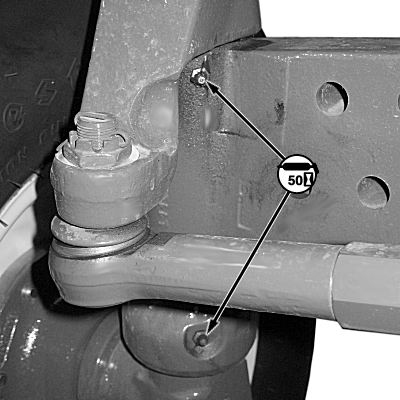

Left-Hand Side Shown

Service Interval—Weekly / 50 Hours* * Daily / 10 Hours if operated in extremely wet or muddy conditions

2WD Axle

Apply several shots of grease to steering spindle fittings, on both left and right-hand sides.

MFWD Axle

P14504-UN-16FEB08

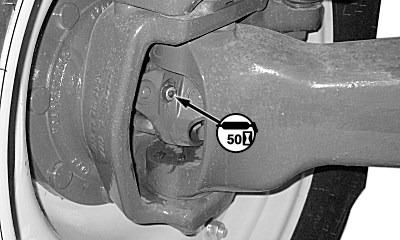

Right-Hand Side—Front

P14505-UN-16FEB08

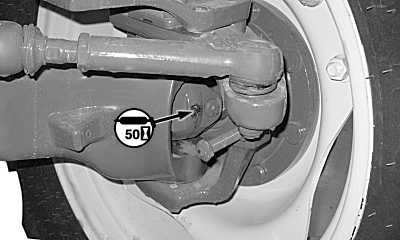

Right-Hand Side—Rear

Service Interval—Weekly / 50 Hours* * Daily / 10 Hours if operated in extremely wet or muddy conditions

Turn steering wheel full left or right to access lube fittings.

• Left-hand turn
  • Front fitting on left-hand side
  • Rear fitting on right-hand side
• Right-hand turn
  • Rear fitting on left-hand side
  • Front fitting on right-hand side
