Check MFWD Axle Housing Oil Level

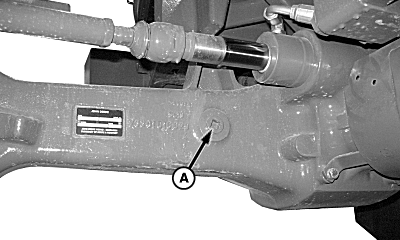

P14512
P14512-UN-30OCT07

A - Plug

Service Interval—250 Hours

  1. Park tractor on level surface.

  2. Remove plug (A). Oil level should be approximately 12 mm (1/2 in.) below edge of plug hole.

  3. If low, add oil through same hole. John Deere Standard JDM J20C oil is recommended. (See MFWD AXLE AND WHEEL HUB OIL in Fuels, Lubricants and Coolant section.)

  4. Apply pipe sealant with TEFLON®, or equivalent, to threads of plug.

  5. Install plug and tighten to specifications.

    ItemMeasurementSpecification
    Plug-to-Axle HousingTorque150 N·m (110 lb-ft)

TEFLON is a trademark of Du Pont Co.

NS43404,00004FB-19-20080216
