Check MFWD Axle Wheel Hub Oil Level

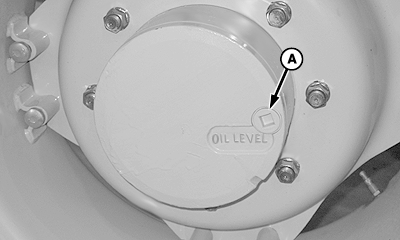

P14513
P14513-UN-16FEB08

A - Plug

Service Interval—250 Hours

  1. Park tractor on level surface.

  2. Turn wheel hubs until the words OIL LEVEL are horizontal.

  3. Remove plug (A). Oil level should be just below plug hole.

  4. If low, add oil through same hole. John Deere Standard JDM J20C oil is recommended. (See MFWD AXLE AND WHEEL HUB OIL in Fuels, Lubricants and Coolant section.)

  5. Apply pipe sealant with TEFLON®, or equivalent, to threads of plug.

  6. Install plug and tighten to specifications.

    ItemMeasurementSpecification
    Plug-to-HubTorque150 N·m (110 lb-ft)

  7. Repeat procedure on opposite wheel hub.

TEFLON is a trademark of Du Pont Co.

NS43404,00004FC-19-20080216
