Change Transmission-Hydraulic Oil

P14515-UN-20NOV07

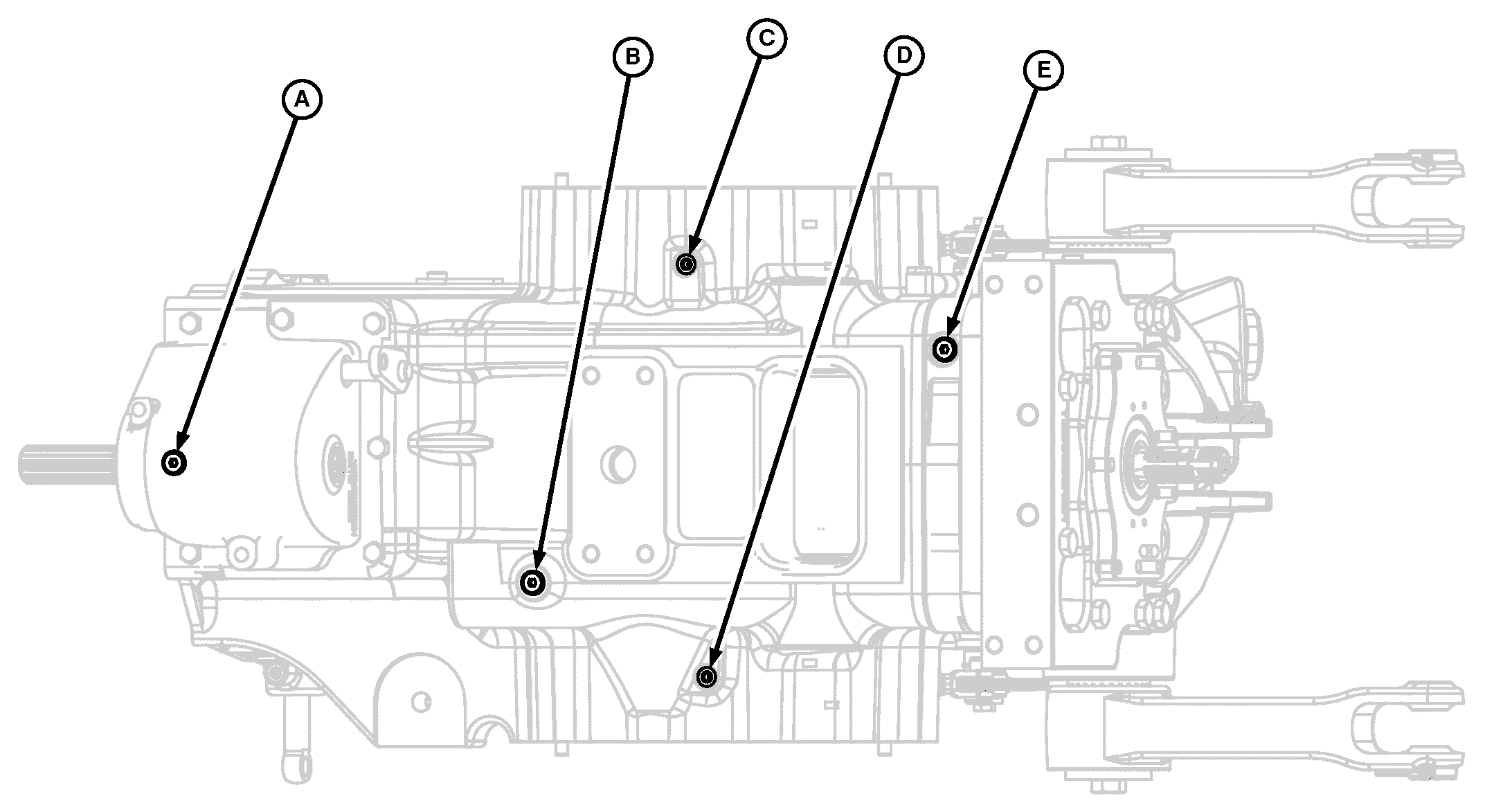

View From Below

A - MFWD Axle Drop Gear Box Drain Plug (If Equipped)

B - Transmission Main Case Drain Plug

C - Left-Side Final Drive Drain Plug

D - Right-Side Final Drive Drain Plug

E - PTO Case Drain Plug

Service Interval—1000 Hours

1. Move rockshaft lever full forward to lower hitch all the way down.

2. Remove drain plugs (A—E).

3. Replace transmission-hydraulic oil filter. (See procedure in this section.)

4. NOTE: Always dispose of used oil in accordance with applicable laws and regulations.

   Install all plugs.

5. IMPORTANT:


   P15261-UN-14FEB08

   A - Sight Glass

   B - Filler Cap

   Do not overfill transmission. This will cause overheating and result in transmission damage.

   Remove cap (B) and fill system with oil as specified in Fuels, Lubricants and Coolant section.

   Item	Measurement	Specification
   Transmission-Hydraulic Oil	Capacity	58 L (15.3 gal)

---




6. Check oil level at sight glass (A) after filling.

7. Install filler cap.

8. Start engine and operate for five minutes.

9. Shut off engine and check oil level. Add oil if necessary.
