Check Cooling System for Leaks

P14518-UN-30OCT07

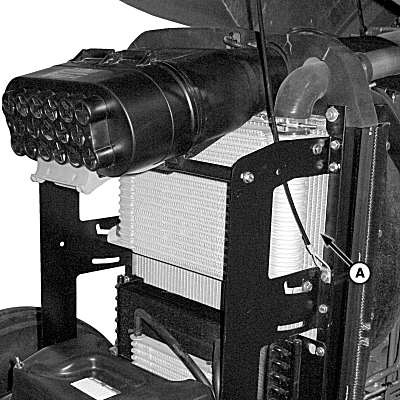

Radiator

P15302-UN-03NOV10

P14521-UN-30OCT07

Left-Hand Side of Engine

A - Radiator

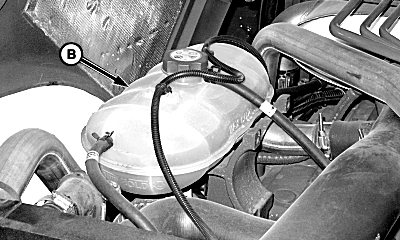

B - Coolant Reservoir

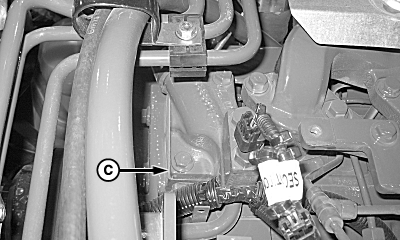

C - Thermostat Housing

Service Interval—500 Hours

1. Check around base of radiator (A) for pinholes, cracks or any sign of coolant leakage.

2. Inspect coolant reservoir (B) for holes, cracks or any sign of coolant leakage.

3. Inspect area around thermostat housing (C) for cracks, or any sign of coolant leakage.
