Replace Alternator/Fan Belt

1.

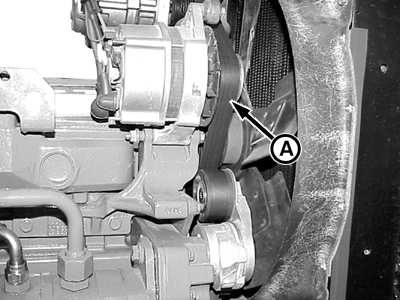

   P12693-UN-25NOV03

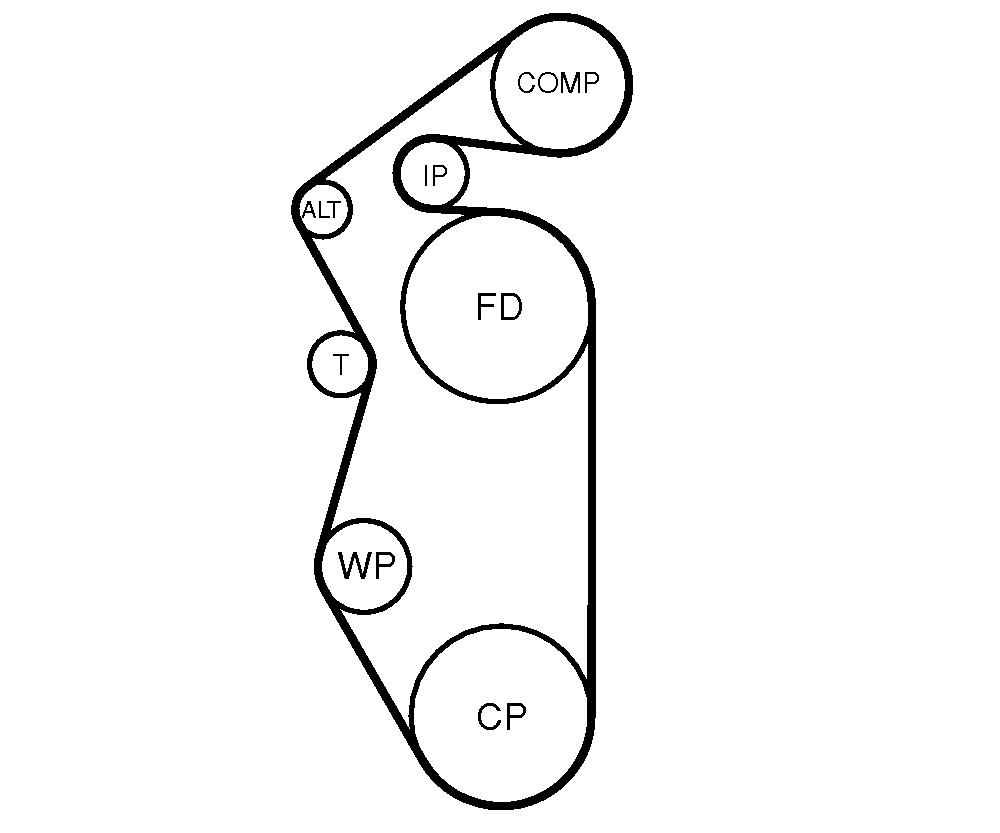

   P14714-UN-20NOV07

   Cab Belt Diagram

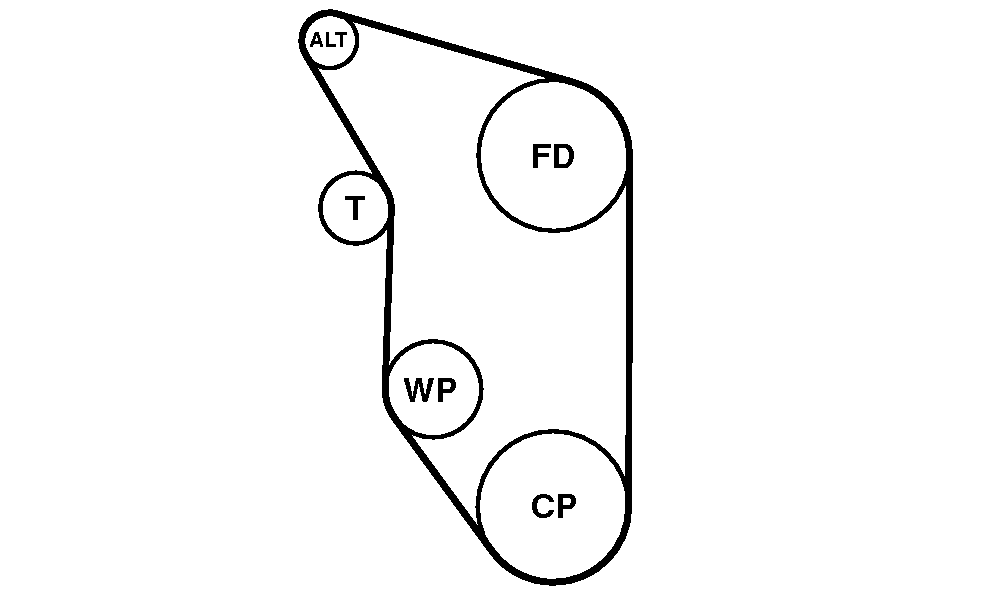

   P9719-UN-27SEP00

   OOS Belt Diagram

   A - Belt

   ALT - Alternator

   COMP - Compressor (Air Conditioning System)

   CP - Crankshaft Pulley

   FD - Fan Drive Pulley

   IP - Idler Pulley

   T - Tensioner Idler

   WD - Water Pump

   Raise hood.

---




2. Release tension on belt using a 1/2 in. drive long-handle breaker bar. Remove belt (A) from alternator pulley over fan.

3. Install new belt in reverse order of removal.
