Remove Battery

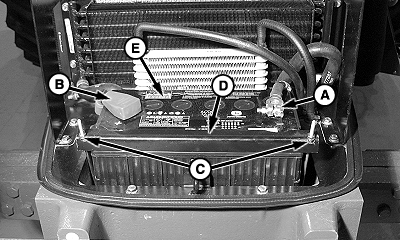

P14569-UN-05NOV07

A - Negative Terminal (—)

B - Positive Terminal (+)

C - Nuts

D - Bracket

E - Battery

1. CAUTION: To avoid sparks, disconnect negative cable (A) first and connect it last.

   Raise hood.

2. Remove battery cover.

3. Disconnect negative (—) battery cable (A).

4. Disconnect positive (+) battery cable (B).

5. Remove nuts (C) and bracket (D).

6. Remove battery (E) from machine.
