Access Fuses and Relays
P14570-UN-05NOV07

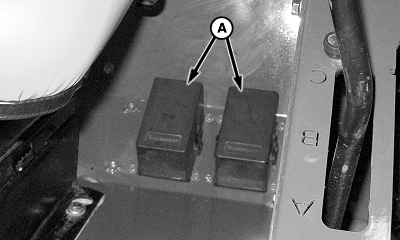

OOS Fuse Box Location
P14571-UN-05NOV07

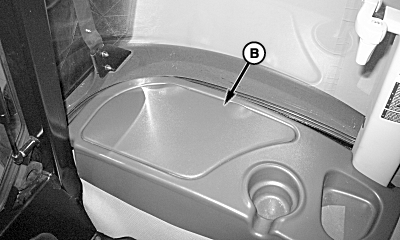

Cab Fuse Box Location
A - Fuse Box Cover (OOS)
B - Fuse Box Cover (Cab)
- OOS — Pinch tabs and pull off cover (A).
- Cab — Pry off cover (B).
To remove fuse box cover:
|
Fuse Rating |
Color |
|---|---|
|
5 Amp |
Orange |
|
10 Amp |
Red |
|
15 Amp |
Blue |
|
20 Amp |
Yellow |
|
30 Amp |
Green |
IMPORTANT: Do not replace original fuse with higher rated fuse or machine damage may occur.
If original size fuse will not carry electrical load and continues to blow contact your John Deere dealer.
|
NS43404,000051B-19-20100611 |
